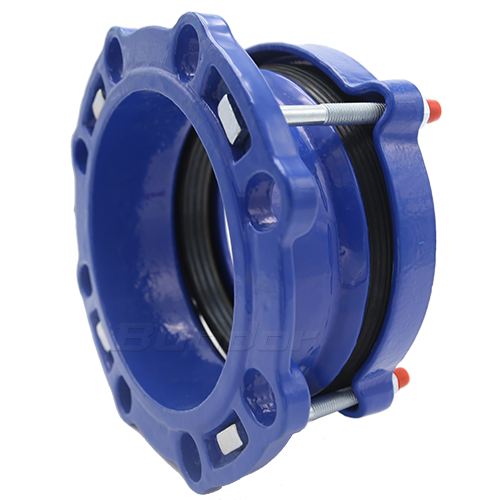

Flange Adaptor

【Size Range】: DN150

【Pressure】: PN16，250PSI

【Body Materials】: QT450-10

【Seat Materials】: EPDM

Chat Online sales@bundor.com

ADVANTAGES

Features:
Diameter range：DN50-DN600
Applicable pressure：PN16，250PSI
Applicable temperature:0℃～50℃
Suitable medium ：Water and neutral liquid
Body material：QT450-10
Application fields: Water supply and drainage, water treatment, water conservancy projects, etc.

Product advantages:
1. Each product has a standard abrasive tool. The grinding tool is CNC machined for high precision.
2. The spheroidization rate of each product can reach level 2 or above.
3. The spray material is sprayed with imported powder paint.
4. Each pipe fitting is tested on site.

PARAMETER INFORMATION

Name	1-Body	2-Rubber gasket	3-Gland	4-Nut	5-Bolt
Materials	QT450-10	EPDM	QT450-10	45#	45#
Size	Range	DN	NPS	D	H	L
DN50 59-73	59-73	50	2	165	76	130
DN65 72-85	72-85	65	2.5	185	76	130
DN80 88-103	88-103	80	3	220	76	130
DN100 108-128	108-128	100	4	225	76	130
DN125 132-154	132-154	125	5	280	76	130
DN150 159-182	159-182	150	6	295	76	130
DN175 192-209	192-209	175	7	340	76	130
DN200 218-235	218-235	200	8	340	76	130
DN250 246-270	246-270	250	10	410	85	130
DN250 271-289	271-289	250	10	410	85	130
DN300 315-332	315-332	300	12	485	90	130
DN300 322-340	322-340	300	12	485	90	130
DN350 374-391	374-391	350	14	520	90	160
DN400 417-437	417-437	400	16	580	90	160
DN450 470-485	470-485	450	18	640	90	160
DN450 480-500	480-500	450	18	640	90	160
DN500 526-546	526-546	500	20	715	90	160
DN600 630-650	630-650	600	24	840	90	160
