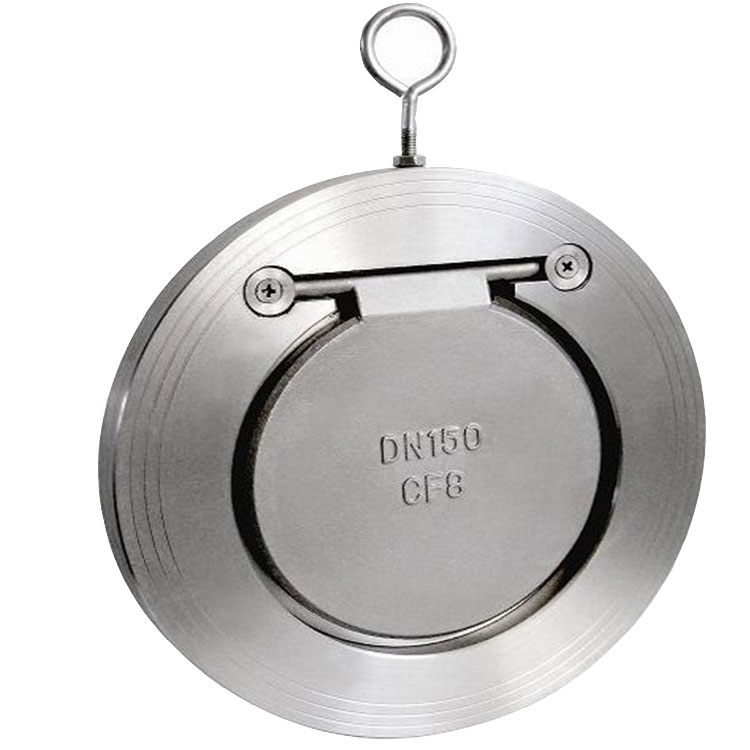

Wafer Check Valve

【Size Range】: DN50-600

【Pressure】: PN10/16/25/40/150LB/300LB

【Body Materials】: CF8

【Seat Materials】: 304

【Disc Materials】: CF8

Chat Online sales@bundor.com

ADVANTAGES

Adventage:
1. The valve body is precision cast, with fine appearance and up-to-standard materials
2. The internal parts are processed by CNC machine tools, with precise matching, interchangeable parts, and smooth and beautiful appearance
3. The sealing surface is plasma surfacing to increase the wear resistance of the valve
4. Rubber soft seals can be selected according to requirements
5. Each valve is tested for double-layer pressure of the shell and seal in accordance with national standards before leaving the factory

PARAMETER INFORMATION

Optional Configuration
	Valve Body	Valve Seat	Valve Disc
	WCB/SS	13Cr/SS/Ruber	WCB/SS

Parameter information：
1. Valve implementation standards：
Name	Design and manufacturing	Connection Standards	Structure length	Pressure test standard
Optional Configuration	JB/T 8937	GB/T 9113	JB/T 8937	GB/T 13927
2. Main parts information：
Name	Valve Body	Valve Seat	Valve Disc
Material and Description	CF8	304	CF8
3. Size Information：
Nominal size
DN	NPS（inch）	L	D	Φd
50	2''	19	108	25
65	2 1/2''	19	128	38
80	3''	19	143	46
100	4''	19	163	72
125	5''	19	193	95
150	6''	19	219	115
200	8''	29	274	140
250	10''	29	329	188
300	12''	38	385	216
350	14''	41	444	263
400	16''	51	496	305
450	18''	51	555	356
500	20''	65	616	406
600	24''	70	733	482
