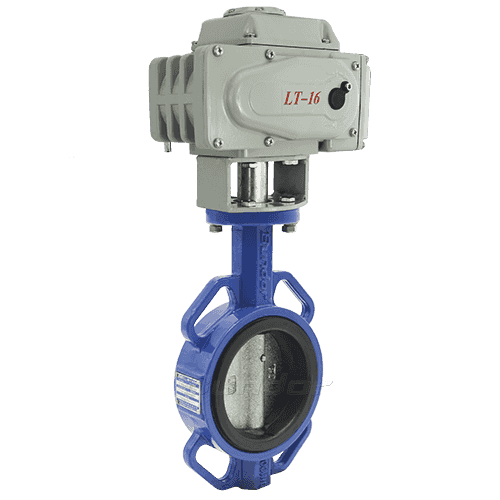

Electric Butterfly Valve

【Size Range】: 2~32"(DN50~DN800）

【Pressure】: PN10, PN16, Class125

【Body Materials】: Cast Iron, Ductile Iron

【Seat Materials】: NBR, EPDM, VITON, PTFE

【Disc Materials】: Ductile Iron, WCB, CF8,CF8M, Al-bronze C958

【Stem Materials】: SS416, SS304, SS316

ADVANTAGES

Motorized butterfly valve Features

24 months guarantee

Zero Leakage

Bi-Directional

Low Torque,long life cycle

360°polished disc assures positive on-off

Epoxy coated body,smooth surface

Various kinds of materials,applicable to different medium

Adoptive Standards

Motorized butterfly valve:

Valve Design: API 609, MSS SP-67

Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1

Pressure Test: API 598

Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16

Top Flange: ISO5211

Product Advantage

1、The length of the short structure can save raw materials and installation space, and also effectively support the strength of the pipeline

2、The valve block is the correct movement of the gate, extrusion fast, to ensure effective sealing valve

3、Triangle support material, guarantee the required mechanical properties

4、According to different working conditions demand design V, triangle, or five corners and other ports, in order to meet the needs of various flow regulation

5、No groove at the bottom to make sure no slag and full bore flow

6、Bundor valve strict implementation of the API598 experimental standard, for each product to implement 100% positive and negative double pressure test, guarantee delivery to customers is 100% qualified products

7、Bundor Group dedicated to the dedication of the valve for 23 years, with professional production, sales, research and after-sales team,we are your strong backing.

Standard Test

Motorized wafer butterfly valve:

Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test: 1.1 times the working pressure with water.

Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.

Special Test: On request, any other test can be carried out according to special instruction by client.

PARAMETER INFORMATION

SIZE		A	B	L	ANSI 150B		DIN PN 10		DIN PN 16		JIS 10K		ISO 5211			TOP FLANGE
SIZE					ANSI 150B		DIN PN 10		DIN PN 16		JIS 10K		ISO 5211
mm	in				ΦK	N-Φd	ΦK	N-Φd	ΦK	N-Φd	ΦK	N-Φd	ΦD	ΦD1	N-ΦG
40	1.5"	67	141	33	98.5	4-Φ16	110	4-Φ18	110	4-Φ18	105	4-Φ19	65	50	4-Φ8	F05
50	2"	67	141	43	120.6	4-Φ19	125	4-Φ18	125	4-Φ18	120	4-Φ19	65	50	4-Φ8	F05
65	2.5"	75	151	46	139.7	4-Φ19	145	4-Φ18	145	4-Φ18	140	4-Φ19	65	50	4-Φ8	F05
80	3"	95	160	46	152.4	4-Φ19	160	8-Φ18	160	8-Φ18	150	8-Φ19	65	50	4-Φ8	F05
100	4"	111	180	52	190.5	8-Φ19	180	8-Φ18	180	8-Φ18	175	8-Φ19	90	70	4-Φ10	F07
125	5"	129	193	56	215.9	8-Φ22.4	210	8-Φ18	210	8-Φ18	210	8-Φ23	90	70	4-Φ10	F07
150	6"	142	207	56	241.3	8-Φ22.4	240	8-Φ22	240	8-Φ22	240	8-Φ23	90	70	4-Φ10	F07
200	8"	170	240	60	298.4	8-Φ22.4	295	8-Φ22	295	12-Φ22	290	12-Φ23	125	102	4-Φ12	F10
250	10"	206	270	68	361.9	12-Φ25.4	350	12-Φ22	355	12-Φ26	355	12-Φ25	125	102	4-Φ12	F10
300	12"	238	316	78	431.8	12-Φ25.4	400	12-Φ22	410	12-Φ26	400	16-Φ25	125	102	4-Φ12	F10
350	14"	267	368	78	476.2	12-Φ28.4	460	16-Φ22	470	16-Φ26	445	16-Φ25	125	102	4-Φ12	F10
400	16"	298	400	86	539.7	16-Φ28.4	515	12-Φ26	525	16-Φ30	510	16-Φ27	175	140	4-Φ18	F14
450	18"	318	422	105	577.8	16-Φ31.8	565	20-Φ26	585	20-Φ30	565	20-Φ27	175	140	4-Φ18	F14
500	20"	349	479	130	635	20-Φ31.8	620	20-Φ26	650	20-Φ33	620	20-Φ27	175	140	4-Φ18	F14
600	24"	410	562	152	749.3	20-Φ35.1	725	20-Φ30	770	20-Φ36	730	24-Φ33	210	165	4-Φ22	F16
