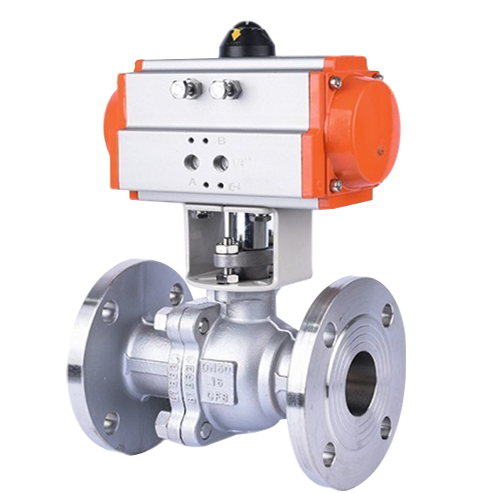

Pneumatic ball valve

【Size Range】: DN15-DN300

【Pressure】: PN16

【Body Materials】: WCB/Stainless steel

【Seat Materials】: PTFE/Stainless stell /Hard alloy

【Stem Materials】: 2Cr13/304/316

ADVANTAGES

Features:

Applicable medium:Water ,steam,oil products etc

Suitable temperature: -20℃~150℃

Application field:Municipal construction, water conservancy projects, powe station, water supplier and drainage, water treatment, oil & petrochemical industry.

Product advantages:
1、The valve body is a precision casting valve body, the material is up to standard, the appearance is fine, and there is no trachoma;
2、The valve body is a solid durable body;
3、The sphere is a stainless steel forged sphere;
4、Anti blow-out shaft design with excellent safety performance ;
5、The protection level of pneumatic actuator reaches IP67;
6、Each valve will be inspected for shell and seal pressure before leaving factory。

PARAMETER INFORMATION


Executive standard:
Name Design and manufacture Face to face Length Inspection Standard End  Flange
Reference standard GB/T 12237 GB/T 12221 GB/T 13927 JB/T 79
 Material of Main Parts:
Name 1-Body 3-Seat seal 4-Ball 6-Shaft 9-Pneumatic actuator
Materials CF8 PTFE 304 304 Aluminium alloy
Dimensions:
DN NPS L ΦD ΦD1 ΦD2 Z-Φd
15 1/2'' 130 95 65 45 4-14
20 3/4'' 140 105 75 55 4-14
25 1'' 150 115 85 65 4-14
32 1  1/4'' 165 135 100 78 4-18
40 1  1/2'' 180 145 110 85 4-18
50 2'' 200 160 125 100 4-18
65 2  1/2'' 220 180 145 120 4-18
80 3'' 250 195 160 135 8-18
100 4'' 280 215 180 155 8-18
125 5'' 320 245 210 185 8-18
150 6'' 360 280 240 210 8-23
200 8'' 400 335 295 265 12-23
250 10'' 450 405 355 320 12-25
300 12'' 620 460 410 375 12-25
