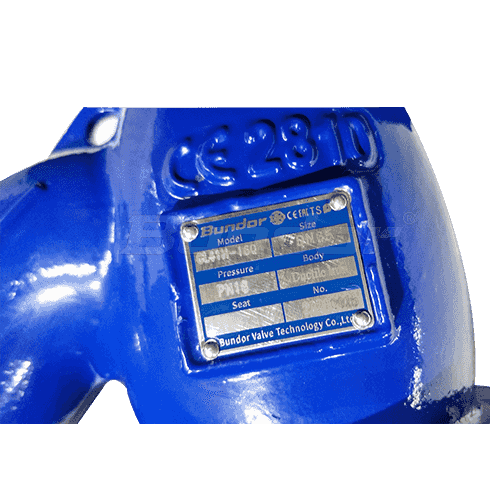

DIN Y Stainer-PN10/16

【Size Range】: 1/2"--24"

【Pressure】: PN10/16

【Body Materials】: DI

ADVANTAGES

Working Temperature:-10~200°C

Medium:Water, Oil

Applications:Municipal construction, water project,electricity,water supply and drainage,water treatment,petrolum

Product Identity

1、1.The body is ductile iron,high level than national stanard.Tensile strength is 450Mpa,elongation is large than 10%,can not be broken easily when transport.

2、The screen adopts 304 steel plate punching, rolling, spot welding, mesh mesh can be customized according to customer requirements, DN200 and above size with reinforcement structure design, high strength of the screen, with erosion resistance, corrosion resistance characteristics, the material of the screen through the spectrometer strict detection, ensure that the chemical composition of the screen meets the standard requirements.

3、Sealing gasket made of graphite material, high temperature resistance, long service life.

4、The strainer adopts full size form and streamline design to reduce the fluid resistance coefficient of the strainer.The diameter and length of the screen increase, increase the effective filtration area of the screen, reduce the pressure loss.

5、The valve cavity becomes larger, and the circulation area between the screen and the inner wall of the valve body is more than half of the flow channel area, which effectively improves the utilization rate of the mesh at the back of the screen and reduces the pressure loss.

6、The location of the drain hole in the low end of the valve cover makes the drain more thorough and improves the efficiency of the drain.

7、Both inner and out part is epoxy coating, the thickness is 250μm minimum,can prevent rust well,can be used in  sewage system.

PARAMETER INFORMATION

DIN Y Stainer
Nominal Size L PN16
DN NPS ΦA ΦB ΦC n-d
15 1/2'' 130 95 65 46 4-14
20 3/4'' 150 105 75 56 4-14
25 1'' 160 115 85 65 4-14
32 1  1/4'' 180 140 100 76 4-18
40 1  1/2'' 200 150 110 84 4-18
50 2'' 230 165 125 99 4-18
65 2  1/2'' 290 185 145 118 4-18
80 3'' 310 200 160 132 8-18
100 4'' 350 220 180 156 8-18
125 5'' 400 250 210 184 8-18
150 6'' 480 285 240 211 8-22
200 8'' 600 340 295 266 12-22
250 10'' 730 405 355 319 12-26
300 12'' 850 460 410 370 12-26
350 14'' 980 520 470 429 16-26
400 16'' 1100 580 525 480 16-30
450 18'' 1200 640 585 548 20-30
500 20'' 1250 715 650 609 20-33
600 24'' 1450 840 770 720 20-36
