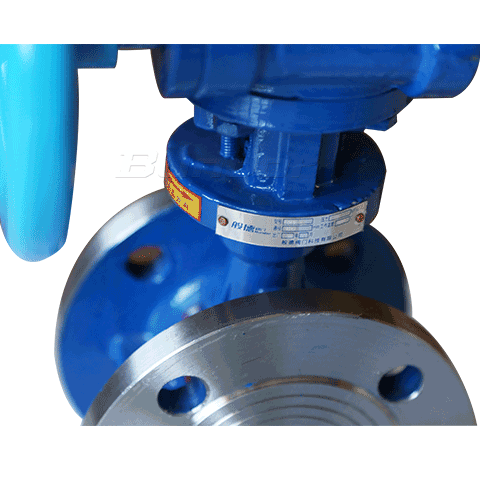

WCB/SS Triple Eccentric Butterfly Valve

ADVANTAGES

Introduction

Eccentric flange butterfly valve is our new design, it is mainly used in the pipeline of water, power plants, steel smelting, chemical industry, papermaking, water projects, environmental facilities, etc. Especially used for regulation in water pipes and closure equipment.

Adoptive Standards

Valve Design: API 609, MSS SP-67

Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1

Pressure Test: API 598

Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16

Top Flange: ISO5211

Product Advantage

1, Reasonable design, compact structure, easy to assemble and repair

2, Eccentric structure, Reduce seal friction, extended service life

3, The valve disc seal with “T” type structure, sealing pair is linear sealing

4, Completely sealing, zero leakage

5, Replaceable sealing ring, O-ring, disc, stem and other parts to suit different medium and temperature

Standard Test

Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test: 1.1 times the working pressure with water.

Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.

Special Test: On request, any other test can be carried out according to special instruction by client.

PARAMETER INFORMATION

PN( MPa)		1	1.6
DN(mm)		100-1200	100-1200
Test pressure	shell	1.5	2.4
MPa	Seal	1.1	1.76
Suitable temperature
Suitable medium		fresh water, seage, sea water, air

Size	actuator	L	D	D1	d	n	d0	b	f	H1	H2	L1	L2	L3	L4	Φ	weight
mm	actuator	L	D	D1	d	n	d0	b	f	H1	H2	L1	L2	L3	L4	Φ	Kg
DN100	XJ24	127	220	180	156	8	19	19	3	310	109	52	45	158	210	150	19
DN150	XJ24	140	285	240	211	8	23	19	3	440	143	52	45	158	210	150	37
DN200	XJ30	152	340	295	266	8	23	20	3	510	182	77	63	238	315	300	51
DN250	XJ30	165	395	350	319	12	23	22	3	565	219	77	63	238	315	300	68
DN300	4022	178	445	400	370	12	23	24.5	4	630	244	95	72	167	242	300	93
DN350	4023	190	505	460	429	16	23	24.5	4	715	283	110	91	188	275	400	122
DN400	4023	216	565	515	480	16	28	24.5	4	750	312	110	91	188	275	400	152
DN450	4024	222	615	565	530	20	28	25.5	4	820	344	473	147	109	420	400	182
DN500	4024	229	670	620	582	20	28	26.5	4	845	381	473	147	109	420	400	230
DN600	4025	267	780/755	725/705	682/667	20	31/26	30	5	950	451	533	179	138	476	400	388
DN700	4025	292	895/860	840/810	794/772	24	31/26	32.5	5	1010	526	533	179	138	476	400	480
DN800	4026	318	1015/975	950/920	901/878	24	34/31	35	5	1140	581	655	217	170	577	500	661
DN900	4026	330	1115/1075	1050/1020	1001/978	28/24	34/31	37.5	5	1197	643	655	217	170	577	500	813
DN1000	4026	410	1230/1175	1160/1120	1112/1078	28	37/31	40	5	1277	722	655	217	170	577	500	1018
DN1200	4027	470	1455/1405	1380/1340	1328/1295	32	40/34	45	5	1511	840	748	262	202	664	500	1501
